Heavy-Duty Conveyor Protection & Material Flow

Fully automatic belt trackers, primary & main scrapers, and air cannon systems engineered for maximum operational uptime.

Request a Quote View Catalogs

100%: Automatic & Maintenance-Free Tracking
Up to 95%: Residue Carryback Eliminated
Up to 7.5 m/s: Belt Speed Operational Range

Category 01 • Belt Alignment

ZENTRAX & Centering Tracking Systems

Fully automatic tracking rollers and centering stations that correct mistracking before it damages belts, idlers and structures.

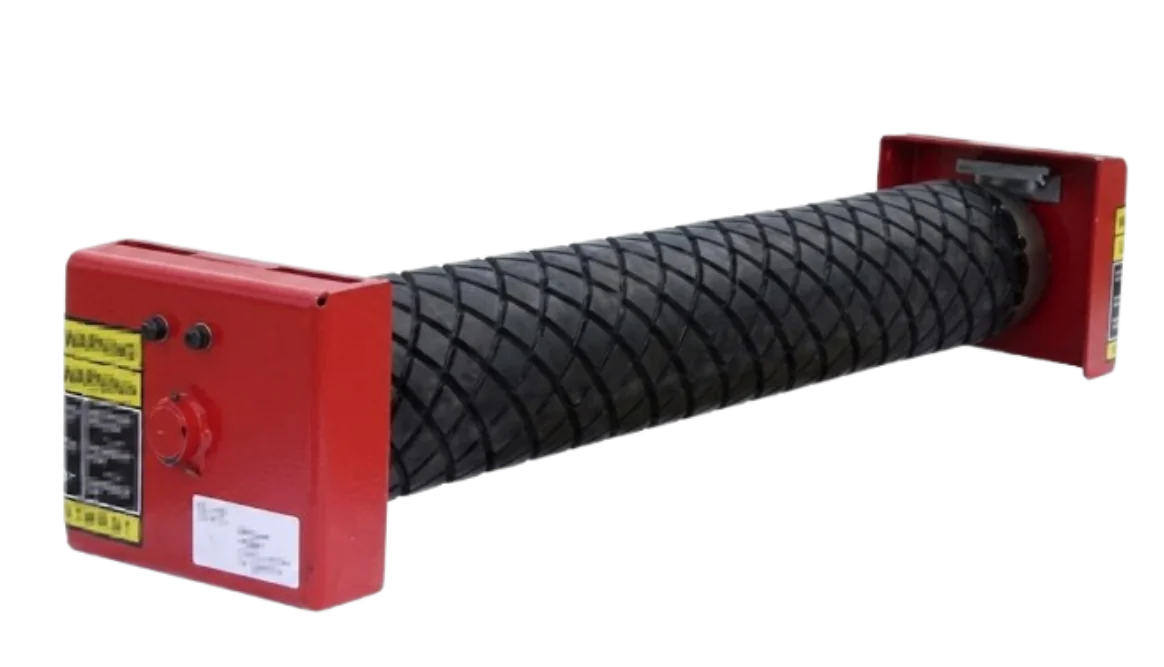

Automatic Tracker Roller

ZENTRAX

Belt Width:500–1600 mm
Deflection:±3° / ±7°

100% maintenance-free with zero wearing parts
Durable rubber surface for all weather conditions
Compact build suitable for reversing operations

View Dimensions

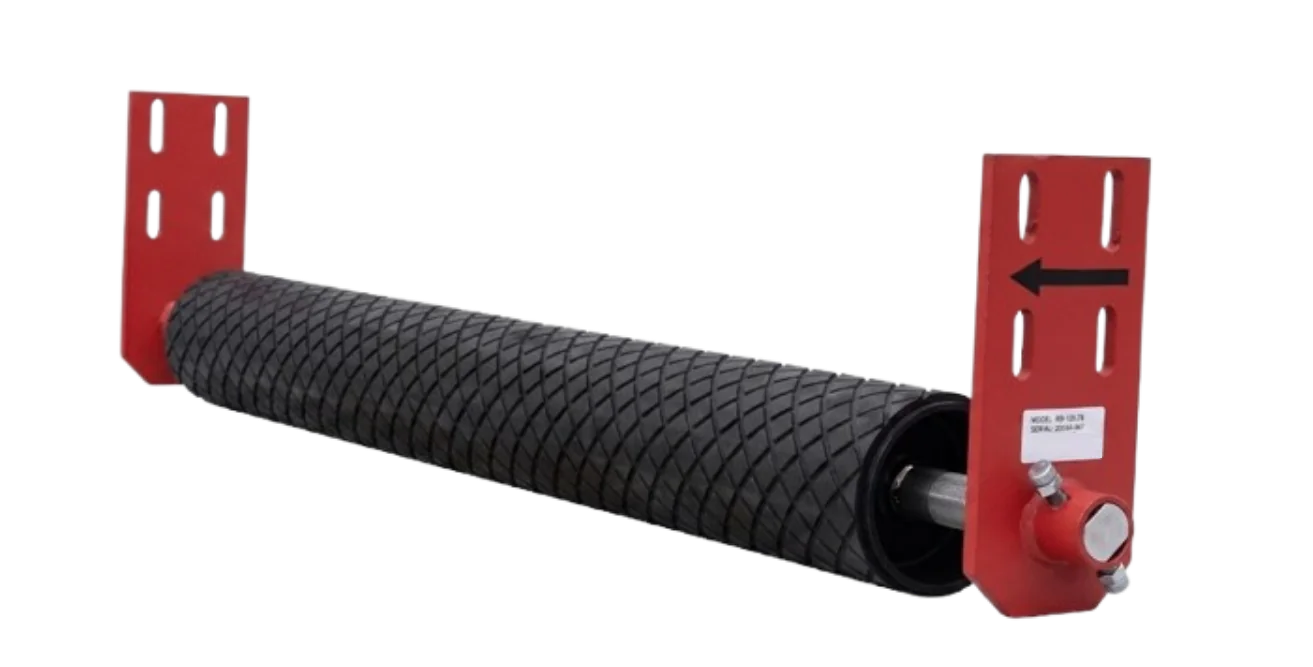

Heavy-Duty Tracker Roller

JUMBO-ZENTRAX

Belt Width:800–2000 mm
Maximum Speed:7.0 m/s

±7° deflection bearing for reversible heavy-duty lines
100% maintenance-free with zero wearing parts
Reinforced build for high-tonnage mining lines

View Dimensions

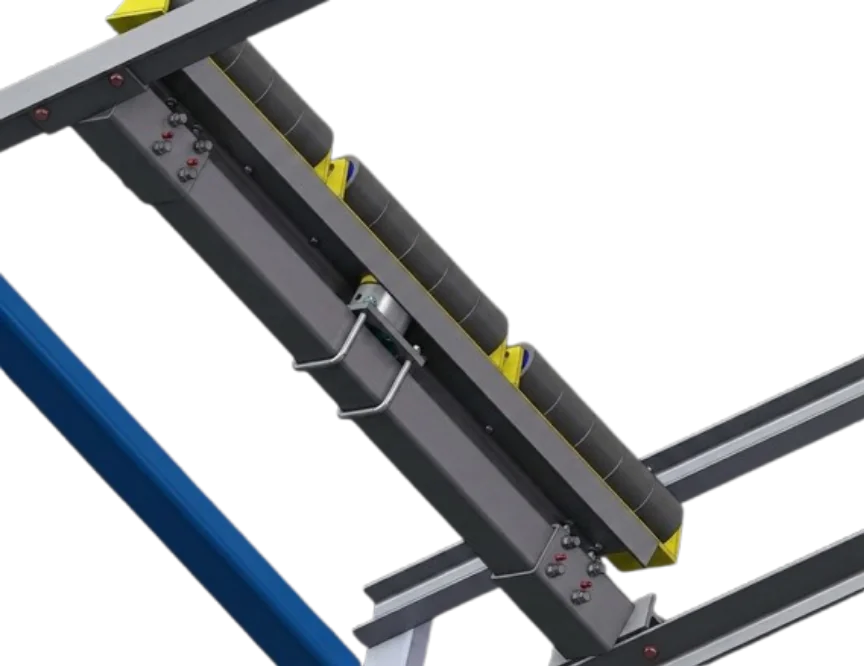

Return-Side Centering Station

EC-3

Belt Width:1200–2400 mm
Maximum Speed:Up to 7.5 m/s

100% maintenance-free return-side centering
External bearing block for high steering forces
Telescopic frame fits any conveyor structure

View Dimensions

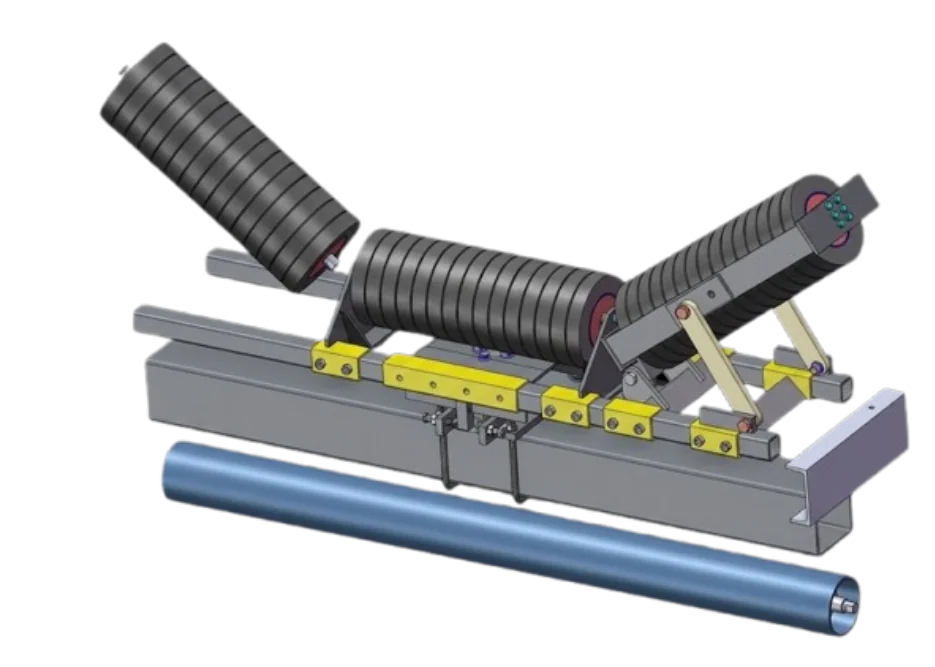

Troughed-Side Centering Station

RHT-3

Belt Width:1200–2400 mm
Maximum Speed:Up to 7.5 m/s

100% maintenance-free idlers with wear coating
Installed on troughed, loaded side of the belt
Reversible lateral centering for heavy bulk loads

View Dimensions

Category 02 • Head Drum Cleaning

CONDOR Pre-Scraper Series

Primary drum pre-scrapers that remove the bulk of adhering material directly at the head pulley, before it becomes carryback.

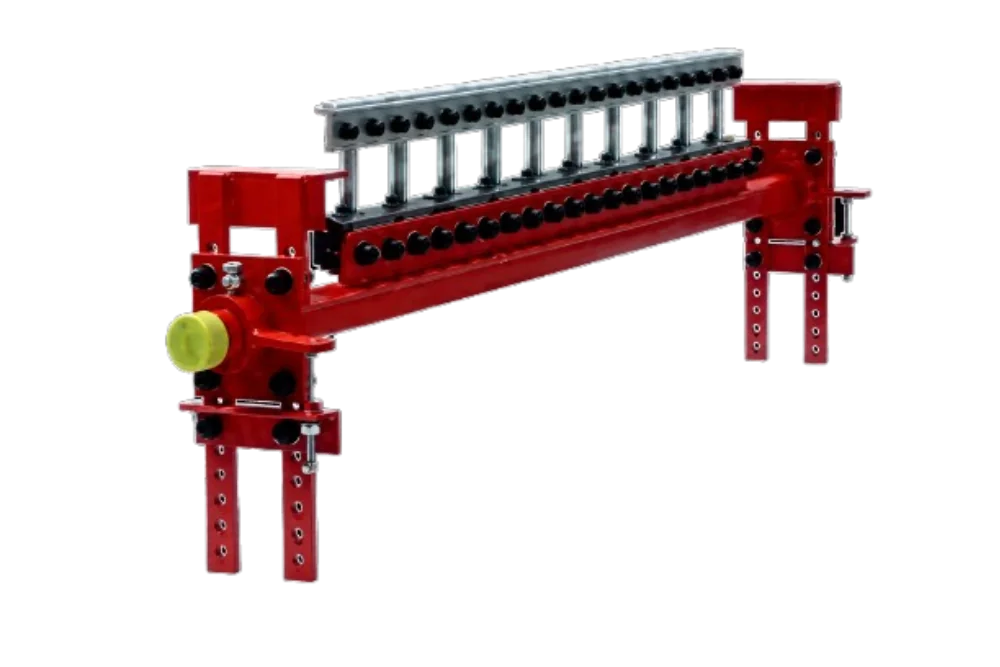

Pre / Drum Belt Scraper

CONDOR TA-100

Belt Width300–2000 mm
Maximum Speed3.5 m/s

Eliminates up to 95% of material carryback directly at head drum
Wear-proof tungsten-carbide scraper blades on torsion rubber units
Maintenance-free operation & suitable for reversible belts

View Dimensions

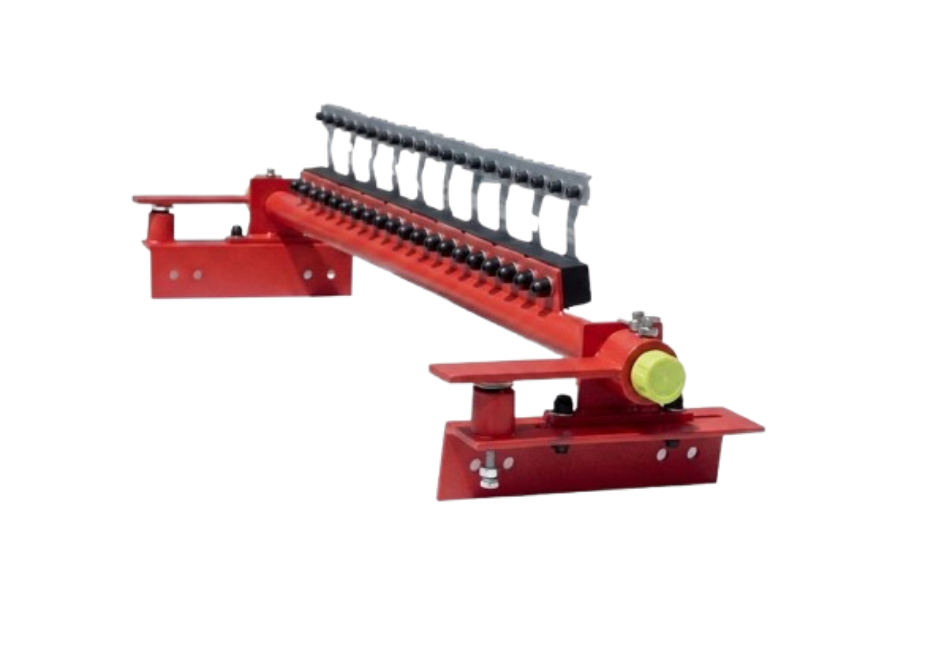

Pre / Drum Belt Scraper

CONDOR HT

Belt Width300–2000 mm
Maximum Speed3.5 m/s

Eliminates up to 95% of material carryback directly at head drum
Self-adjusting spring action with zero manual retensioning
Maintenance-free operation & suitable for reversible belts

View Dimensions

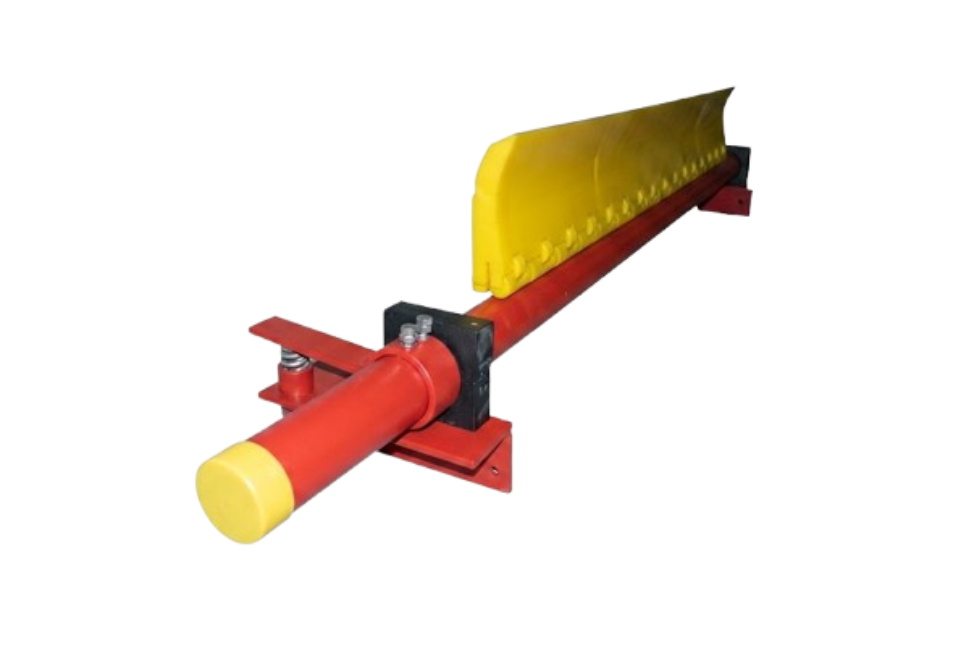

Pre / Drum Belt Scraper

CONDOR XL/PU

Belt Width800–2000 mm
Maximum Speed7.5 m/s

Eliminates up to 95% of material carryback on high-speed lines
Segmented polyurethane (PU) blades with low contact pressure
Maintenance-free operation & suitable for reversible belts

View Dimensions

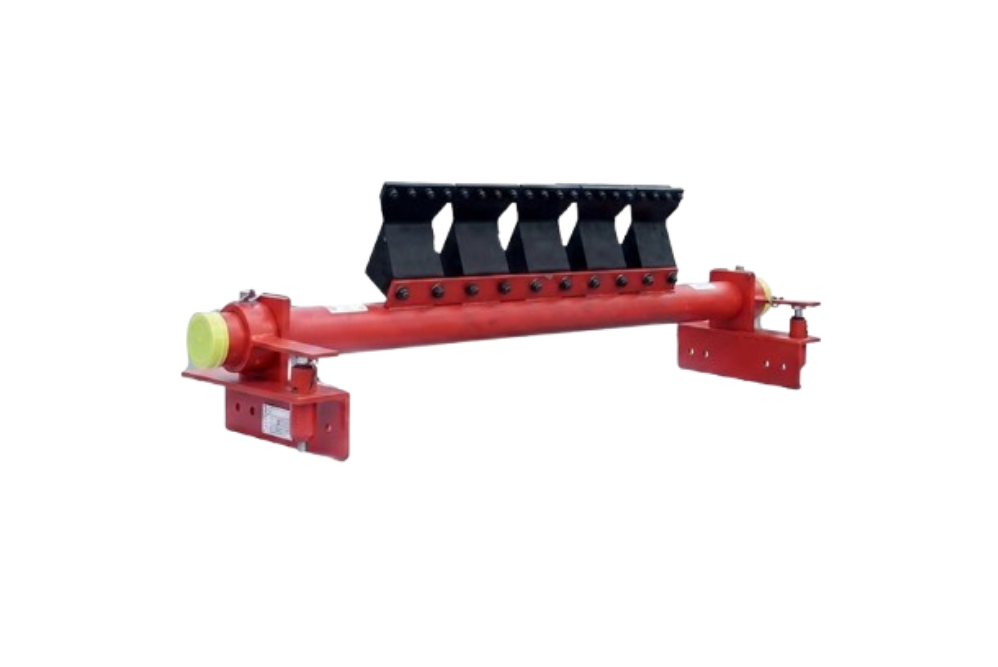

Pre / Drum Belt Scraper

CONDOR XL/HT

Belt Width1200–2000 mm
Maximum Speed7.5 m/s

Eliminates up to 95% of material carryback on high-tonnage lines
Modular heavy-duty tungsten-carbide segments for extreme wear
Maintenance-free operation & suitable for reversible belts

View Dimensions

Category 03 • Main & Internal Cleaning

COBRA & V-PLOW SCRAPERS

Main under-belt scrapers and internal V-plows that finish the cleaning stage and protect return idlers.

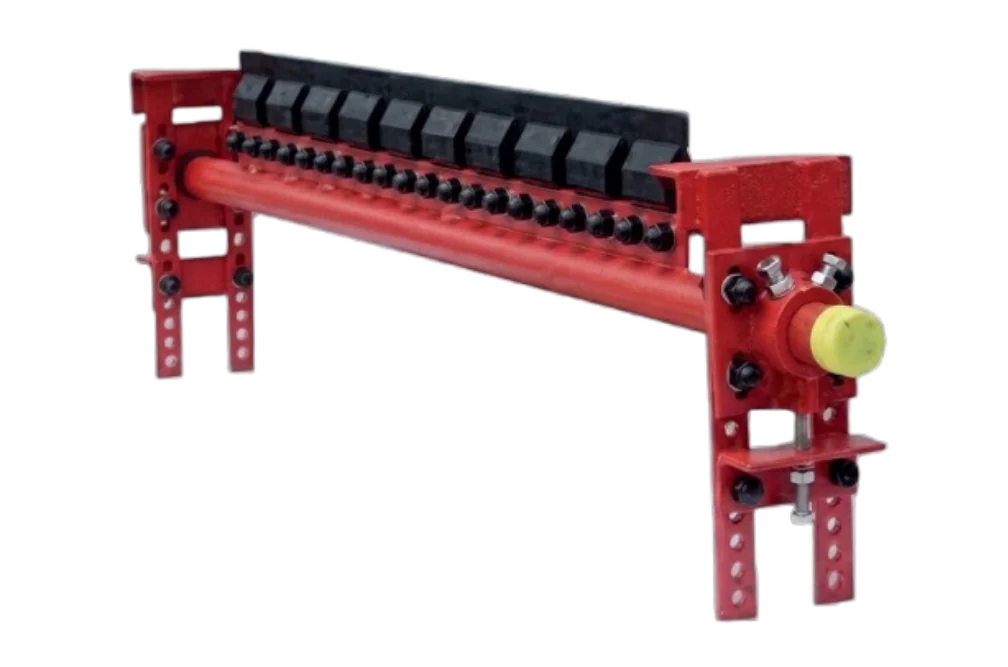

Main Belt Scraper

COBRA VA-100

Belt Width300–2000 mm
Maximum Speed3.5 m/s

Eliminates up to 95% of residual fine carryback under the belt
Wear-resistant tungsten-carbide blades on torsion rubber units
Maintenance-free operation & suitable for reversible belts

View Dimensions

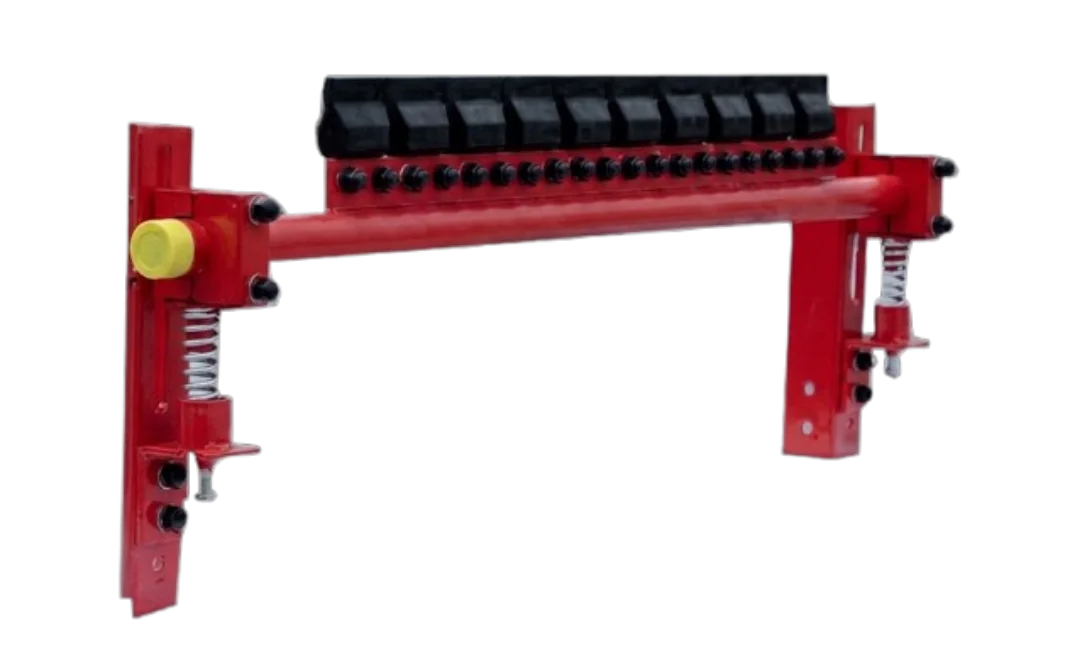

Main Belt Scraper

COBRA HT

Belt Width300–2000 mm
Maximum Speed3.5 m/s

Eliminates up to 95% of residual fine carryback under the belt
Self-adjusting spring action bedded in torsion rubber units
Maintenance-free operation & suitable for reversible belts

View Dimensions

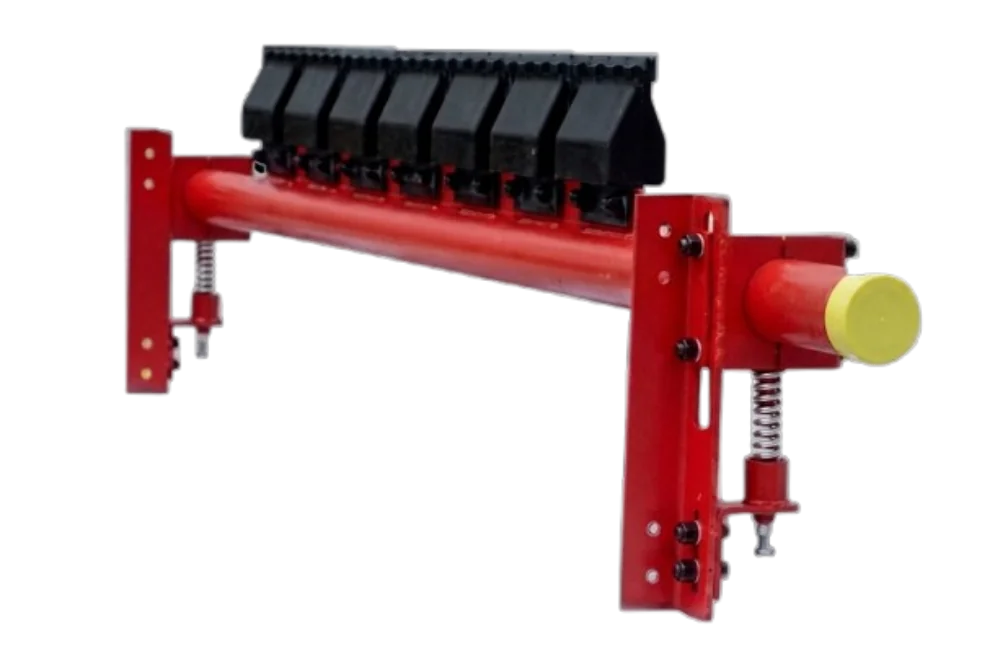

Main Belt Scraper

COBRA XL/HT

Belt Width800–2000 mm
Maximum Speed7.5 m/s

Highest cleaning performance for heavy-duty power & mining lines
Heavy-duty segmented tungsten-carbide blade modules
Maintenance-free operation & suitable for reversible belts

View Dimensions

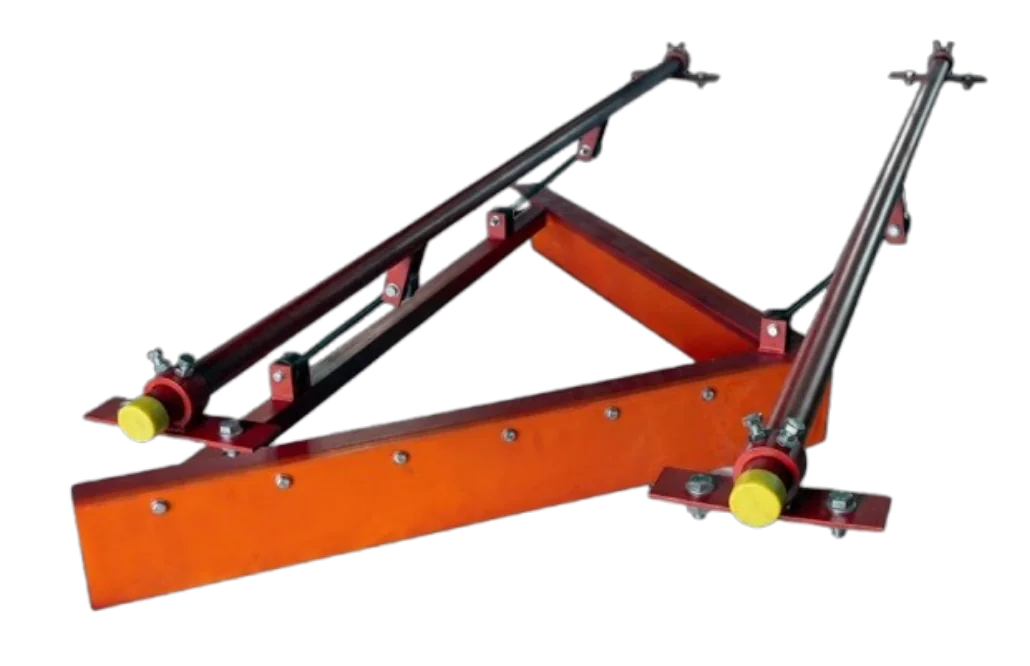

INTERNAL V-PLOW

V-PLOW SCRAPER

Belt Width400–2400 mm
Blade MaterialPolyurethane (PU)

Deflects falling debris to protect return idlers & tail drums
Cleans internal belt surface with wear-resistant PU blades
Maintenance-free operation suitable for all bulk materials

View Dimensions

CATEGORY 04 • AIR CANNONS & MATERIAL FLOW

EN25 TO EN300 INDUSTRIAL AIR CANNONS

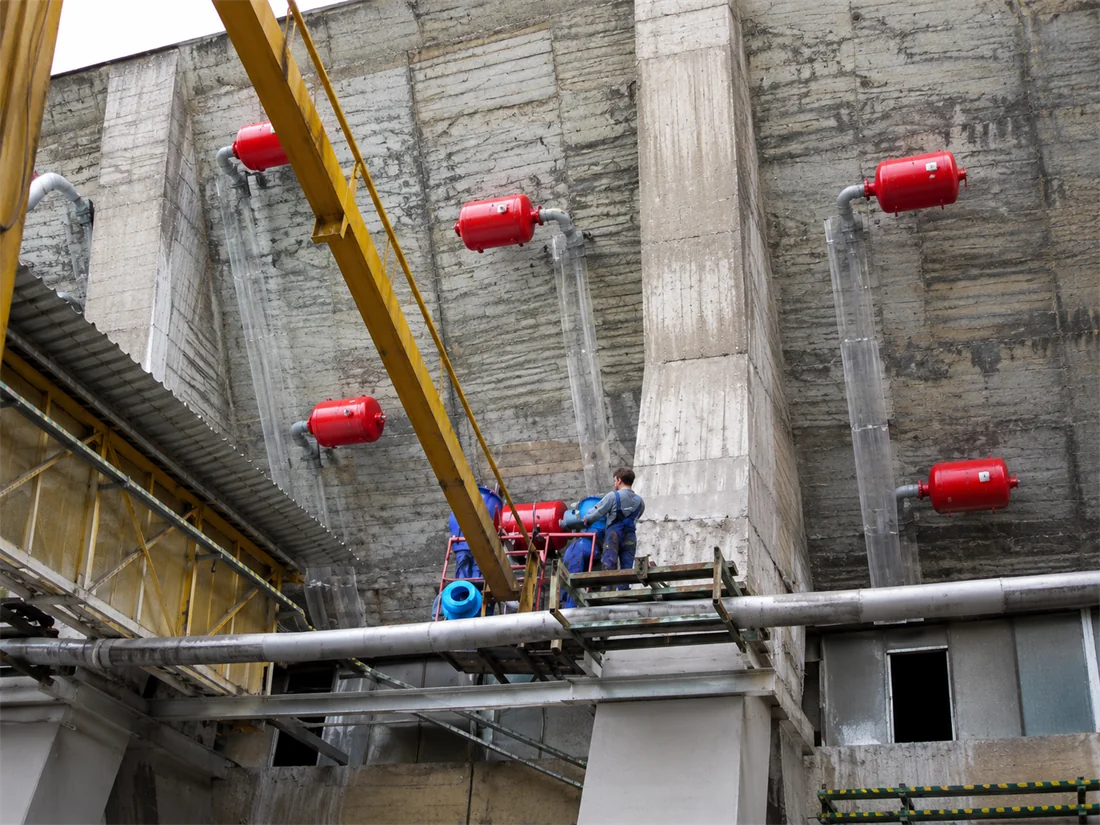

EN25–EN300 industrial air cannons installed on a concrete silo

PNEUMATIC MATERIAL FLOW SYSTEM

EN25 – EN300 AIR CANNONS

High-impact 6 bar pneumatic shockwave eliminates bridging, ratholing and dome formation
Automated PLC timer sequence or push-button firing to maintain continuous material flow
Proven for coal, cement, ash, ores, sand, quartz, flour, wood chips & other bulk solids

Internal spring-return piston prevents dust & particulate ingress into the pressure tank

MODEL

AIR VOLUME

SHOCK WAVE FORCE

TYPICAL APPLICATION

EN25

0.15 m³

11.28 kN

Small hoppers & transfer chutes

EN50

0.30 m³

22.56 kN

Chutes, feed pipes & local blockages

EN100

0.60 m³

39.83 kN

Silos, cyclones & dust collectors

EN120

0.72 m³

47.77 kN

Preheater towers & storage hoppers

EN150

0.90 m³

59.84 kN

Clinker coolers & large-volume silos

EN300

1.80 m³

69.65 kN

Heavy accumulation, kiln inlets & raw meal silos

VIEW SYSTEM SCHEMATICS

CATEGORY 05 • SPARE & WEAR COMPONENTS

WEAR PARTS, BLADES & TORSION UNITS

High-grade OEM replacement blades, carbide modules, and elastomeric tensioning units engineered for direct reordering and prolonged service life.

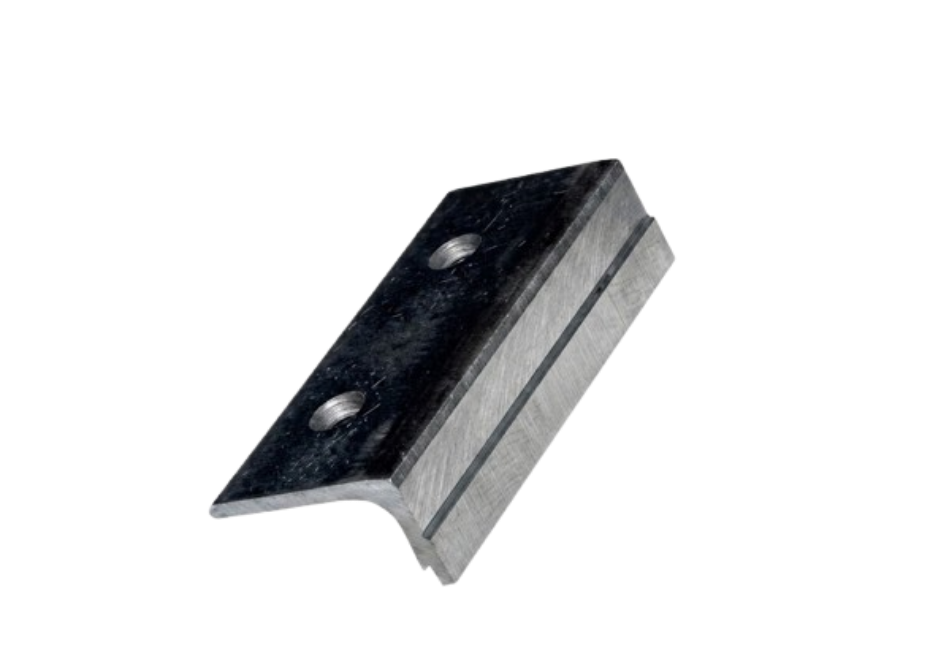

Abrasion-Resistant Blades

Tungsten-Carbide Blades

Available Sizes

See catalog

Core Material

Sintered Carbide

High-purity sintered tungsten carbide with wear-resistant steel backing
Maximum abrasion resistance and extended blade life for heavy bulk materials
Fits CONDOR TA-100, CONDOR HT, CONDOR XL/HT, COBRA VA-100, COBRA HT & COBRA XL/HT

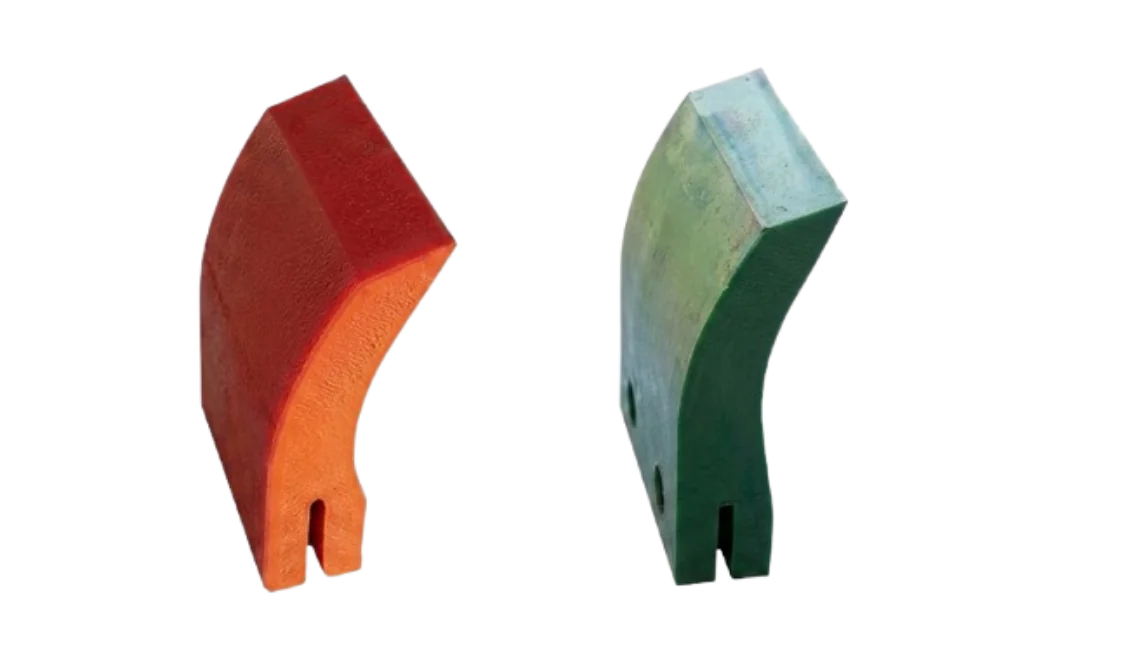

Elastomer Wear Profiles

Polyurethane Wear Blades

Available Sizes

PU 153 / PU 200 mm

Core Material

Technical PU

High-grade technical polyurethane (PU) with low-friction sliding surface
Gentle on belt covers while safely accommodating mechanical belt splices
Available for CONDOR XL/PU primary scrapers and internal V-plows

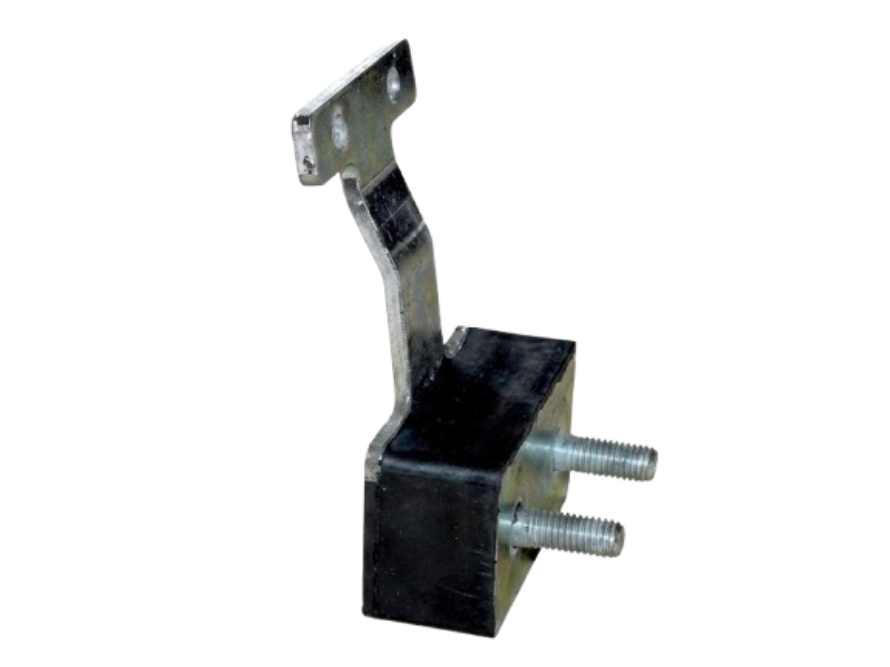

Damping & Tensioning

Torsion Rubber Units

Module Spacing

B=100 / B=200 mm

Core Material

Elastomer

Molded elastomeric torsion blocks providing dynamic self-adjusting blade pressure
Absorbs continuous system vibrations and impacts across head and tail pulleys
Fits modular CONDOR and COBRA scraper mounting assemblies

View Full Parts Catalog

REACH OUT TO OUR TEAM

Tell us about your operational challenges or conveyor setup, and our team will help select the right solution. Custom dimensions, specialized blade profiles, and tailor-made frame adaptations can also be evaluated upon request.
